Last updated: September 2026 Written by the LiftKitGuide Team, truck suspension installers and editors
A 2024 Ram 2500 leveling kit raises the front 1.75 to 2.5 inches to remove the factory rake and fit 35-inch tires. Front coil spacers start around $80, replacement leveling coils run $250 to $900, and a shop install with alignment costs $300 to $600, based on typical 2026 pricing.
Key takeaways
- The 2024 Ram 2500 4WD sits about 2 inches lower in front than in back from the factory, so a 2 to 2.5 inch front kit levels it.
- Rough Country’s 2.5-inch spacer kit for 2014-2026 Ram 2500 4WD lists at $79.95 and does not fit Power Wagon, Rebel or rear air suspension trucks, per the manufacturer.
- A 2.5-inch level on a 2024 Ram 2500 fits 35×12.50R20 tires on most trims with minor plastic trimming.
- Cummins diesel trucks level better with replacement coil springs than spacers because the 6.7L engine adds weight over the front axle.
- Every level needs an alignment afterward, which costs $100 to $200.
On this page
The 2024 model shares its front suspension with 2014-2026 Ram 2500 4WD trucks, so most kits cover that whole range. Below: fitment, spacers versus coils, tires, brands, cost and the install.
Which 2024 Ram 2500 trims can take a leveling kit?
Most 2024 Ram 2500 4WD trims with the standard rear coil suspension can take a leveling kit, including Tradesman, Big Horn, Laramie and Limited. The Power Wagon and Rebel ship with factory lift and different springs, so standard spacer kits do not fit them.
Trucks with the optional rear auto-level air suspension need a kit made for that setup. The rear air system holds a set ride height. Thuren Fabrication and Carli sell options for air-equipped trucks.
The 2024 Ram 2500 front end is a solid axle on coil springs located by control arms and a track bar. A track bar is the diagonal bar that keeps the front axle centered under the truck.

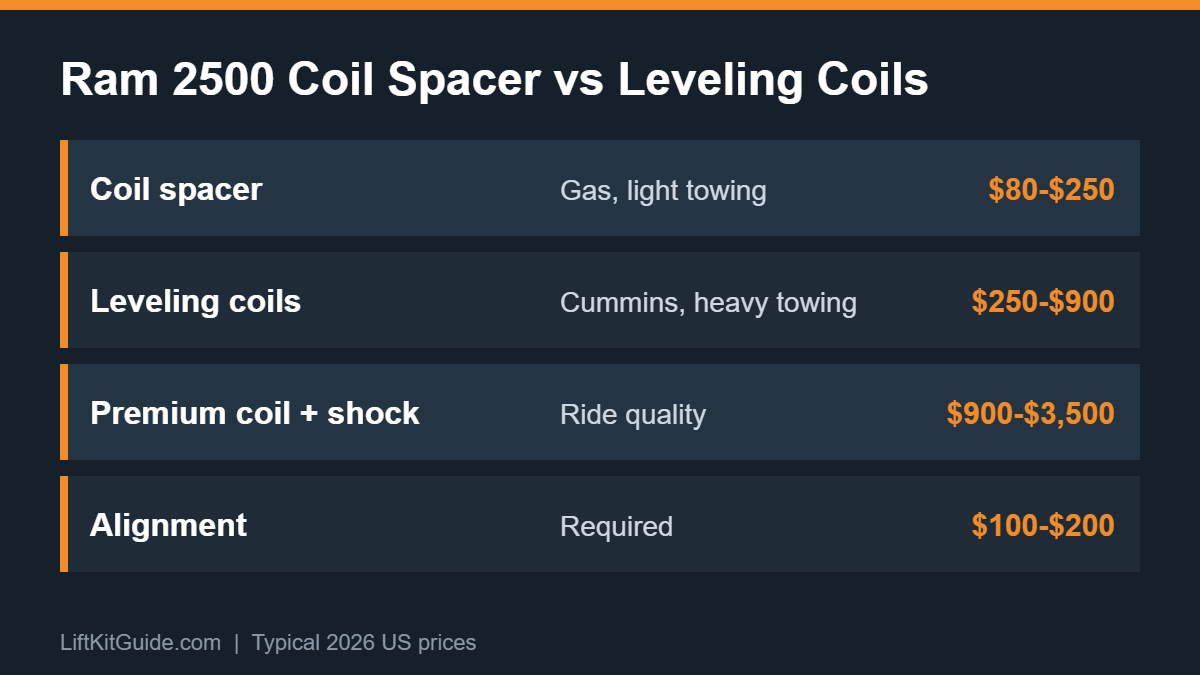

Should you use a Ram 2500 coil spacer or new springs?
A Ram 2500 coil spacer is the right choice for gas trucks that tow lightly, and new leveling coils are the right choice for Cummins trucks and heavy towers. Replacement coils are rated for the extra weight of the 6.7L Cummins.
For a 6.4L HEMI truck used as a daily driver, a 2.5-inch spacer kit is the better choice because it costs under $150 and rides like stock. On a Cummins that pulls a fifth wheel, pay for a Cummins leveling kit with springs, because spacers let the nose sag and bottom out on rough roads.

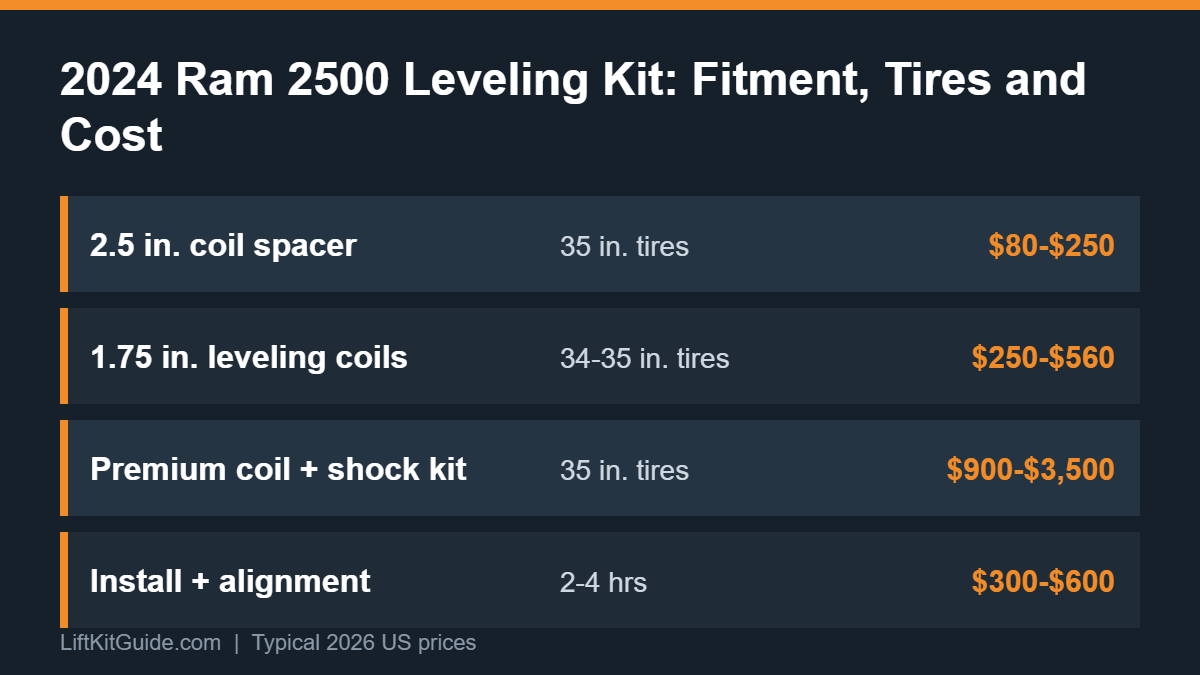

| Kit | Lift height | Price range | What’s included | Best for | Not good for |
|---|---|---|---|---|---|
| Rough Country 2.5 in. spacer | 2.5 in. | $80-$250 | Coil spacers, optional N3 shocks | Gas trucks on a budget | Power Wagon, Rebel, rear air |
| Rough Country 1.75 in. coil | 1.75 in. | $250-$560 | Leveling coil springs, optional shocks | Mild level, stock ride | 37-inch tires |
| ReadyLIFT 1.75-2 in. | 1.75-2 in. | $200-$600 | Spacers or coils, hardware | Clean bolt-in level | Heavy towing on diesels |
| Thuren Fabrication | 2-2.5 in. | $900-$2,000 | Coils, Bilstein 5100 or Fox shocks | Rear-air trucks, towing | Tight budgets |
| Carli 2.5 in. | 2.5 in. | $2,000-$3,500 | Coils, 2.0 shocks, track bar options | Cummins trucks, ride quality | Owners on a budget |

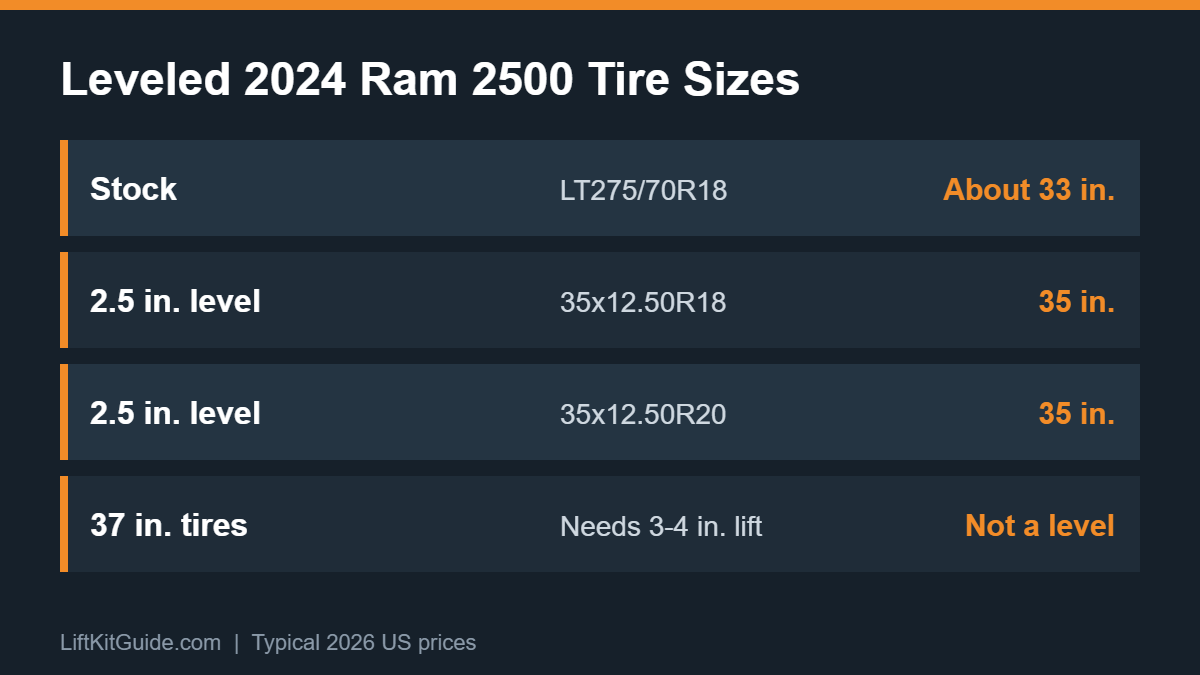

What size tires fit a leveled 2024 Ram 2500?
A leveled 2024 Ram 2500 fits 35-inch tires, such as 35×12.50R20 or 35×12.50R18, on most trims. Stock tires on most trims measure about 33 to 34 inches (LT275/70R18 or LT275/65R20). Expect minor rubbing on the front plastic at full lock with wide wheels or aggressive negative offset, and plan to trim or heat-form the liner.
Ram 2500 leveling kit with 35s setups work best on 18 or 20 inch wheels around 0 to +18mm offset. 37-inch tires need a 3 to 4 inch lift, so check how much does it cost to lift a truck first. The factory 3.73 or 4.10 gears handle 35s fine for most drivers.

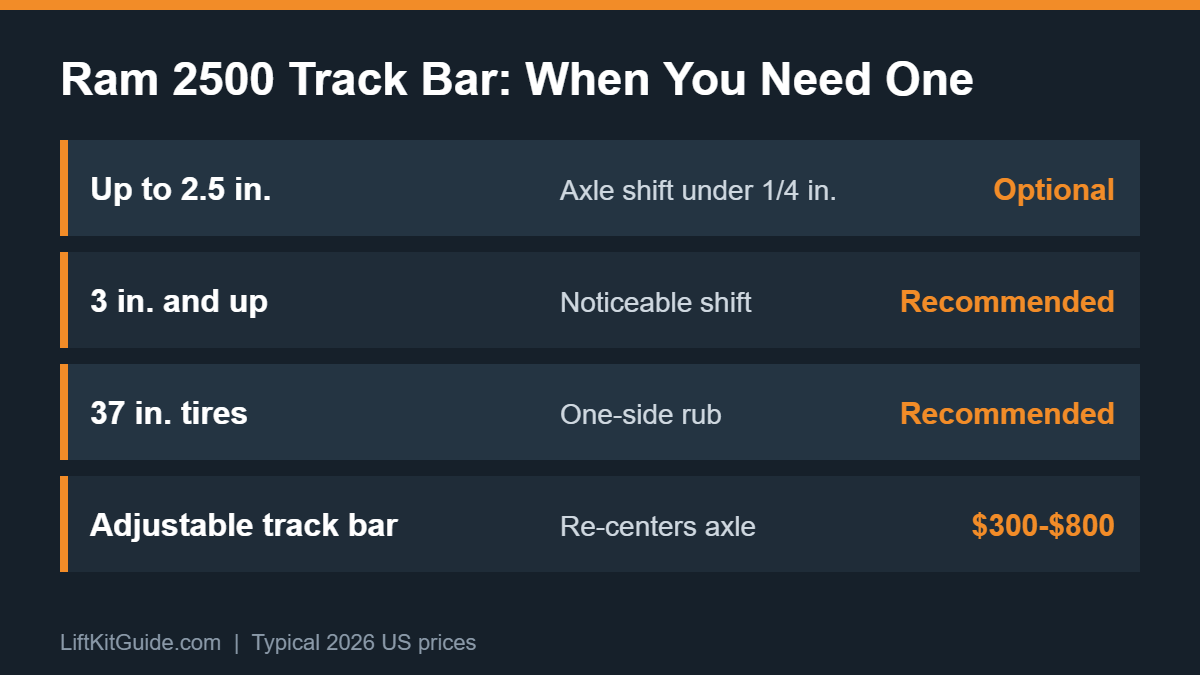

Do you need a Ram 2500 track bar after leveling?
A Ram 2500 track bar is optional at 2.5 inches or less. Lifting the front pulls the axle slightly toward one side, usually under a quarter inch at 2.5 inches.
An adjustable track bar costs $300 to $800 and re-centers the axle. It becomes worth it at 3 inches and up, or on trucks with 37s where the tire rubs one side only.
How much does a 2024 Ram 2500 leveling kit cost installed?
A basic spacer level on a 2024 Ram 2500 costs $300 to $600 installed, and $1,200 to $4,000 installed with coils and premium shocks. Labor runs 2 to 4 hours, plus $100 to $200 for the alignment. See our suspension lift kit installation cost breakdown for how shops price this work.
Still torn? Read leveling kit vs lift kit first.
How do you install a leveling kit on a 2024 Ram 2500?
A spacer leveling kit on a 2024 Ram 2500 takes 2 to 3 hours with jack stands, a floor jack and a torque wrench. Follow the kit’s own instructions and torque chart.
- Park on level ground, chock the rear tires, and measure front and rear fender height.
- Raise the front by the frame, set jack stands, and remove the front wheels.
- Support the axle with a floor jack, then disconnect the lower shock bolts, sway bar links and track bar at the axle.
- Lower the axle slowly until the coil springs are loose. Watch brake lines and ABS wires.
- Seat the spacers on top of the coils, or swap in the new leveling coils.
- Raise the axle, then reconnect the track bar, shocks and sway bar links.
- Torque every bolt to spec and the lug nuts to 130 lb-ft.
- Get an alignment the same day.
Safety note: This job touches steering and suspension load. Never lower the axle without it being supported by a jack.
Frequently asked questions
Will a leveling kit fit a 2024 Ram 2500 Power Wagon?
No. Standard spacer kits do not fit the 2024 Ram 2500 Power Wagon, which has factory lift and unique springs. Rough Country lists Power Wagon and Rebel as excluded. Power Wagon owners should look at brand-specific coil kits made for that truck, and confirm fitment with the brand’s lookup tool.
What size tires fit a leveled 2024 Ram 2500?
35-inch tires fit. A 2 to 2.5 inch leveling kit lets a 2024 Ram 2500 run 35×12.50R18 or 35×12.50R20 tires on most trims. You may need to trim the front plastic liner at full lock. 37-inch tires need a 3 to 4 inch lift.
Do I need a new track bar with a 2.5 inch level?
No, not usually. A 2.5-inch level shifts the front axle less than a quarter inch on a 2024 Ram 2500, which most owners never notice. An adjustable track bar costing $300 to $800 is worth it at 3 inches or more, or if the tires rub on one side.
Does leveling a Ram 2500 affect towing?
No, not at 2.5 inches or less. Leveling does not change the 2024 Ram 2500 tow rating, because the frame, hitch and axles stay the same. Cummins trucks towing heavy loads should use leveling coils instead of spacers so the front does not sag under hitch weight.
Does the 2024 Ram 2500 with rear air suspension need a different kit?
Yes. Trucks with the factory rear auto-level air suspension hold a set rear height, so standard front spacer kits are excluded by most brands. Kits built for rear-air trucks, such as those from Thuren Fabrication, account for this. Check your window sticker for the air suspension option before ordering.
The bottom line
The best 2024 Ram 2500 leveling kit for most owners is a 2 to 2.5 inch setup with 35-inch tires and a same-day alignment. Use spacers on gas trucks and leveling coils on Cummins trucks that tow.
