A 2022 Ram 2500 leveling kit raises the front 2 to 2.5 inches so the truck sits level and clears 35-inch tires. Spacer kits cost $80 to $250, leveling coil kits run $250 to $2,000, and most shops install one with an alignment for $300 to $600. The same kits fit 2019-2023 Ram 2500 4WD trucks.
Key takeaways
- The 2019-2023 Ram 2500 4WD sits roughly 2 inches lower in front than in back, so a 2 to 2.5 inch front kit removes the rake.
- Rough Country’s 2.5-inch spacer kit fits 2014-2026 Ram 2500 4WD trucks and lists at $79.95, but excludes Power Wagon, Rebel and rear air suspension trucks.
- A 2.5-inch level lets most 2019-2023 Ram 2500 trims run 35×12.50R20 tires with light plastic trimming.
- Cummins trucks that tow should use leveling coils instead of spacers because the 6.7L engine puts extra weight on the front springs.
- Budget $100 to $200 for an alignment after any level.
On this page
This guide covers which 2019-2023 trims can level, spacers versus coils, tire sizes, brands, cost and the install. It is written for owners of 2019, 2021 and 2022 trucks, since all three share the same front suspension.
Do 2019, 2021 and 2022 Ram 2500 trucks use the same leveling kit?
Yes, the 2019, 2021 and 2022 Ram 2500 4WD share the same front suspension, so one kit covers all three years. A 2019 Ram 2500 leveling kit and a 2021 Ram 2500 leveling kit are the same part numbers at every major brand. The 2019 model year started the fifth-generation Ram HD, and the front axle, coil springs and track bar did not change through 2023.
Most brands list fitment as 2014-2026 because the solid front axle and coil spring layout carried over from 2014. Check your trim, not your year, before ordering.

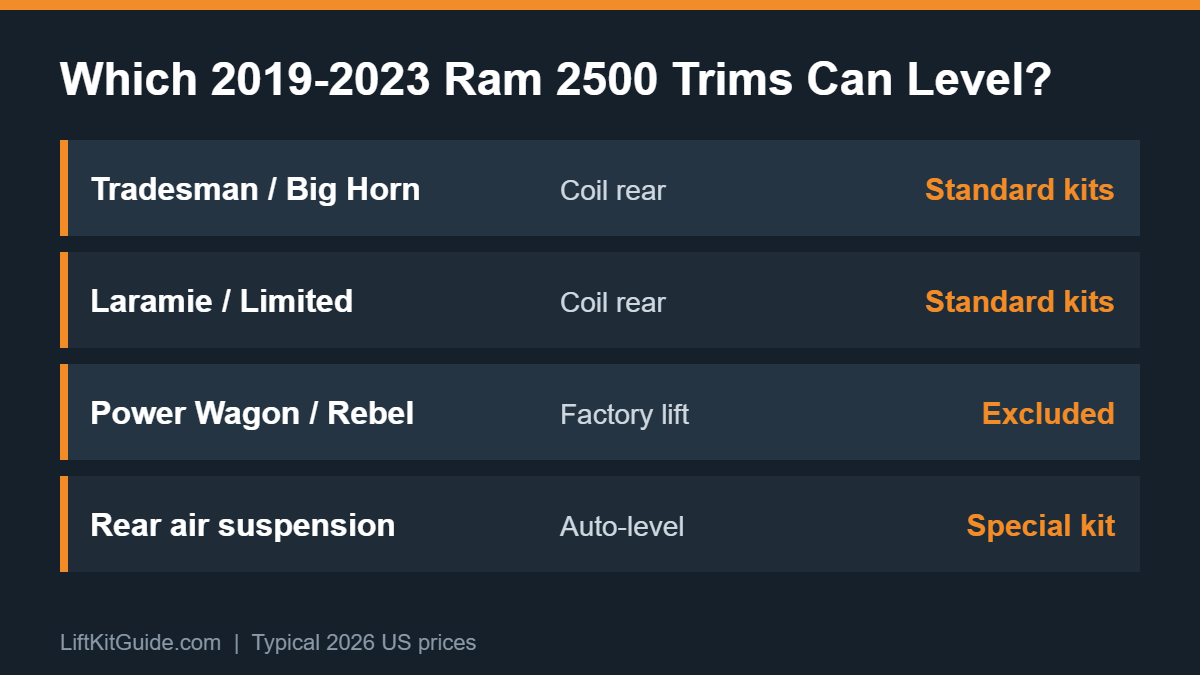

Which 2019-2023 trims are excluded?
The Power Wagon, the Rebel (added for 2023) and any truck with the optional rear auto-level air suspension are excluded from standard spacer kits. The Power Wagon and Rebel ship with factory lift and different springs. Rear-air trucks need a kit designed around the air system’s fixed ride height, such as the options from Thuren Fabrication or Carli.
Should you buy a spacer or leveling coils?
A spacer kit is the right choice for a 6.4L HEMI truck used as a daily driver, and leveling coils are the right choice for a 6.7L Cummins that tows. A coil spacer is a puck that sits on top of the factory spring and raises the front without changing spring rate. Leveling coils replace the factory springs with taller springs rated for the engine weight.
For a gas truck, a $80 to $150 spacer kit is the better choice because it rides like stock and installs in two hours. For a Cummins pulling a fifth wheel, spacers let the nose squat under load, so spend the money on coils.
| Kit | Lift height | Price range | What’s included | Best for | Not good for |
|---|---|---|---|---|---|
| Rough Country 2.5 in. spacer | 2.5 in. | $80-$250 | Coil spacers, optional shocks | Gas trucks on a budget | Power Wagon, Rebel, rear air |
| Rough Country 1.75 in. coils | 1.75 in. | $250-$560 | Leveling coils, optional shocks | Mild level, stock ride | 37-inch tires |
| ReadyLIFT 1.75-2 in. | 1.75-2 in. | $200-$600 | Spacers or coils, hardware | Simple bolt-in level | Heavy diesel towing |
| Thuren Fabrication | 2-2.5 in. | $900-$2,000 | Coils, Bilstein or Fox shocks | Rear-air trucks, towing | Tight budgets |
| Carli 2.5 in. | 2.5 in. | $2,000-$3,500 | Coils, 2.0 shocks, track bar options | Cummins ride quality | Budget builds |
If you are unsure whether a level is enough, read leveling kit vs lift kit before you buy.
What size tires fit a leveled 2019-2023 Ram 2500?
A leveled 2019-2023 Ram 2500 fits 35-inch tires, such as 35×12.50R20 or 35×12.50R18, on most trims. Factory tires on Tradesman, Big Horn and Laramie trucks measure about 32 to 34 inches, depending on wheel size. Wide wheels with negative offset can rub the front plastic at full lock, so plan to trim or heat-form it.
| Setup | Front lift | Common tire | Tire height | Trimming |
|---|---|---|---|---|
| Stock | 0 in. | LT275/70R18 | About 33 in. | None |
| Spacer level | 2.5 in. | 35×12.50R20 | 35 in. | Minor plastic |
| Coil level | 2-2.5 in. | 35×12.50R18 | 35 in. | Minor plastic |
| Needs a lift | 3-4 in. | 37×12.50R20 | 37 in. | Yes, plus a regear |
How much does a 2022 Ram 2500 leveling kit cost installed?
A spacer level costs $300 to $600 installed with the alignment, and a coil and shock kit costs $1,200 to $4,000 installed. Labor runs 2 to 4 hours at $100 to $175 per hour, based on typical US shop rates in 2026. See our breakdown of suspension lift kit installation cost for how shops quote this work.
A Ram 2500 track bar only becomes worth adding at 3 inches or more, or when the tires rub on one side. An adjustable track bar costs $300 to $800 and re-centers the axle, which shifts slightly toward one side as the front rises.
How do you install a leveling kit on a 2019-2023 Ram 2500?
A spacer leveling kit on a 2019-2023 Ram 2500 takes about 2 to 3 hours with a floor jack, two jack stands and a torque wrench. Follow the kit’s instructions and torque chart.
- Park on level ground, chock the rear wheels, and measure front and rear fender height.
- Raise the front by the frame, set jack stands, and remove the front wheels.
- Support the axle with a floor jack, then disconnect the lower shocks, sway bar links and the track bar at the axle.
- Lower the axle slowly until the coils are loose, watching the brake lines and ABS wires.
- Seat the spacers on the coils, or swap in the new leveling coils.
- Raise the axle and reconnect the track bar, shocks and sway bar links.
- Torque every bolt to spec with the truck at ride height.
- Get an alignment the same day.
Safety note: This job touches steering and suspension load. Never lower the axle without it supported on a jack.
Frequently asked questions
Does a 2019 Ram 2500 leveling kit fit a 2022?
Yes. The 2019 through 2023 Ram 2500 4WD use the same front axle, coil springs and track bar, so leveling kits fit all of those years. Most brands list them as 2014-2026 fitment. The exceptions are Power Wagon, Rebel and trucks with rear air suspension, which need specific kits.
Will 35-inch tires fit a leveled 2021 Ram 2500?
Yes. A 2 to 2.5 inch level on a 2021 Ram 2500 fits 35×12.50R18 or 35×12.50R20 tires on most trims. Expect light rubbing on the front plastic at full lock with wide wheels. Stock gears of 3.73 or 4.10 handle 35s fine for most owners.
Does leveling a 2022 Ram 2500 void the warranty?
No, not the whole warranty. Under the Magnuson-Moss Warranty Act, Ram must show an aftermarket part caused a failure before denying that specific claim. A dealer could deny a front-end component claim tied to the kit, but not unrelated engine or electrical repairs.
Do I need an alignment after leveling a Ram 2500?
Yes. Raising the front changes toe and caster, and toe out of spec can wear the inside edges of new tires within a few thousand miles. An alignment costs $100 to $200. Get it the same day and ask for the before-and-after printout.
Can you level a Ram 2500 with rear air suspension?
Yes, but only with a kit built for rear-air trucks. Standard spacer kits exclude the auto-level rear air suspension because it holds a fixed rear height. Kits from Thuren Fabrication and Carli are designed for it. Check your window sticker for the air suspension option before ordering.
The bottom line
The best 2022 Ram 2500 leveling kit for most owners is a 2 to 2.5 inch setup with 35-inch tires and a same-day alignment. Use spacers on gas trucks, coils on Cummins trucks that tow, and compare with our 2024 Ram 2500 leveling kit guide if you are shopping newer trucks.
